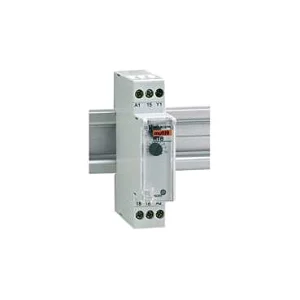

RTB relay-delays de-energizing a load upon closing-1C/O - Uc 24-240 VAC/24VDC
Spécificités essentielles
Produits associés
-
Quick ViewLire la suiteDisjoncteurs modulaires sur rail MCB: Acti9 IC60A9F77416 – Disjoncteur 4P Courbe C Schneider Electric
-
Quick ViewAjouter au panier -
Quick ViewAjouter au panier
Options et accessoires compatibles
Référence :
16066 Marque : Schneider Disponibilité : En Stock
- 16066
- Characteristics
- RTB relay-delays de-energizing a load upon closing-
- 1C/O - Uc 24-240 VAC/24VDC
- Main
- Relay application Time delay relay
- Time delay type Delays de-energizing of a load upon contact
- closing
- Range Multi 9
- Product name RT
- Device short name RTB
- Signal contacts composition 1 C/O
- Complementary
- [Ie] rated operational current 8 A AC 250 V
- 8 A DC 250 V
- 0.01 A DC 5 V
- Impulse duration > 100 ms
- Local signalling LED flashing time delay
- Type of setting Time delay configuration by rotary knob
- Time delay range 0.1...360000 s
- Accuracy error +/- 10 %
- Repeat accuracy +/- 0.5 %
- Control circuit voltage 24 V DC
- 24...240 V AC 50/60 Hz
- 24...240 V AC 50/60 Hz
- [Us] rated supply voltage 24 V DC
- 24...240 V AC 50/60 Hz
- 24...240 V AC 50/60 Hz
- Mounting mode Fixed
- Mounting support 35 mm symmetrical DIN rail
- 9 mm pitches 2
- Height 81 mm
- Width 18 mm
- Depth 66 mm
- Mechanical durability >= 5000000 cycles
- Electrical durability AC-1 : >= 100000 cycles
- Undervoltage behaviour 100 ms
- Connections - terminals Tunnel type terminals 2 cable(s) 1.5 mm² flexible with cable end
- Tunnel type terminals 2 cable(s) 1.5 mm² flexible without cable end
- Tunnel type terminals 2 cable(s) 2.5 mm² rigid with cable end
- Tunnel type terminals 2 cable(s) 2.5 mm² rigid without cable end
- Environment
- IP degree of protection IP40
- immunity to microbreaks <= 20 ms
- ambient air temperature for operation -5...55 °C
- 1 / 1
